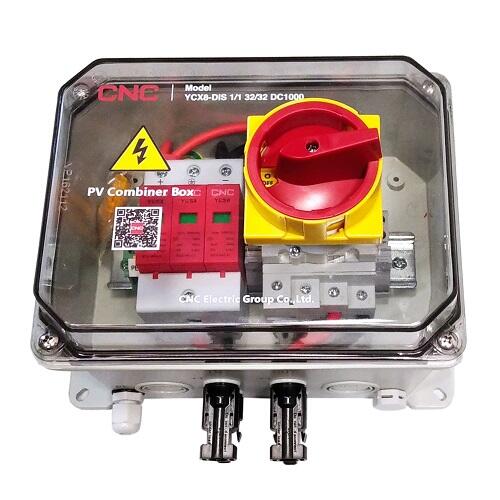

PV Combiner Box, DC 1in-1out, IP67

73.87EUR

Vendor code: NV822287

Availability:

5 pieces in remote warehouse

Delivery: 4-5 working days

PV Combiner Box, DC 1in-1out, IP67
Features:1 input 1 output 1000V DC.DC string box is designed for 1 string in - 1 string out PV system.For surge protection and isolating at solar DC side.Flame retardant rating V0, UV resistance, IP67 waterproof enclosure, lockable in closed position.With MC4 connectors. Box size 215x165x154mm, standards EN60529.DC switch:1000V, 25A (1pc.).Lockable handle.Patented DC arc extinguishing chamber.Standards: UL508i, IEC60947-3 Pv2.DC surge protection device SPD:1000V, 40kA. (1pc.).Designed for solar PV protection.Response time <25ns.Standards: IEC 61643-31, EN 50539-11+ A1.
Technical specifications:Input: 1 string.Output: 1 string.Max voltage: 1000V.Short circuit current per Input (Isc): 15A-30A (changeable).Max current output: 25A.Max discharge current (Imax): 40 kA.Nominal discharge current (In): 20 kA.Voltage protection level (Up): 3.6 kV.Box material: polycarbonate.Safety class: IP67 (waterproof and dustproof), V0 UL94 (flame retardant).Dimensions: 215 x 165 x 154 mm.Input cable glands: PG09, 2.5-16mm.Output cable glands: PG21, 2.5-16mm.Operating temperature: -25°C ~ +60°C.
Warranty: 24 months.

Specification

Similar items

M6AC Smart Battery Charger, AC 100W, DC 300W

71.38 EUR

Buy

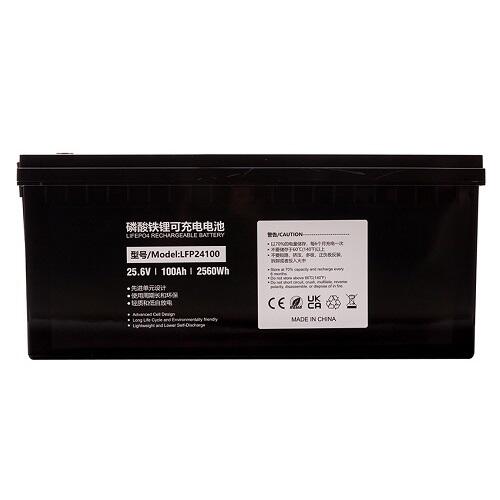

Battery Lithium Iron Phosphate LiFePO4 24V, 100Ah

439.23 EUR

Buy

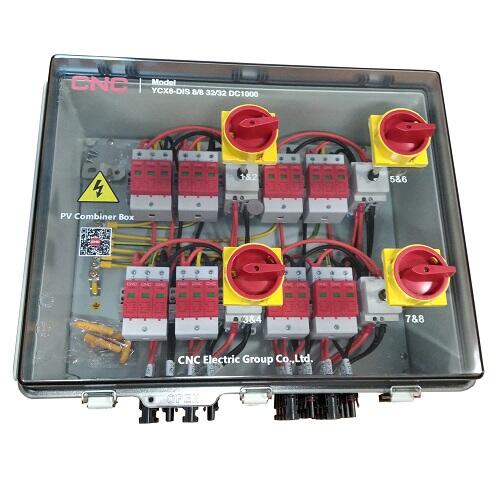

PV Combiner Box, DC 8in-8out, IP66
