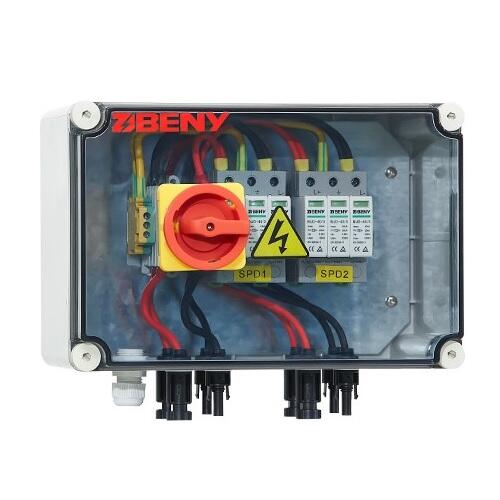

PV Combiner Box, DC 2in-2out, IP66

180.79EUR

Vendor code: NV820139

PV Combiner Box, DC 2in-2out, IP66
Features:2 input 2 output 1000V DC.DC string box is designed for 2 string PV system.For surge protection and isolating at solar DC side.Flame retardant rating V0, UV resistance, IP66 waterproof enclosure, degree of resistance to impacts IK10.Set includes MC4 and glands.DC switch:4P, 1000V, 50A (1pcs.).Door clutch easier operating and lockable handle.Patented DC arc extinguishing chamber.Magnetic steels inside ensure rapid and safe extinguishing.Certification: UI508i approval, IEC60947-3 Pv2.DC SPD:3P, 1000V, 40kA. (2pcs.).Designed for solar PV protection.Higher capacity in 20KA (IEC, UL).Response time <25ns.Certification: IEC 61643, UI1449.
Technical specifications:Input: 2 strings.Output: 2 strings.Max voltage: 1000V.Short circuit current per Input (Isc): 15A-30A (changeable).Max current output: 50A.Enclosure material: polycarbonate.Safety class: IP66, IK10, V0.Dimensions: 200x300x150 mm.Input cable glands: PG09, 2.5-16mm.Output cable glands: PG21, 2.5-16mm.Operating temperature: -25°C ~ +60°C.
Warranty: 24 months.

This product is not available at the moment
